동물용 맥박(PPG), 산소포화도(SpO2) 측정기 (Pulse Oximeter for Animals)카테고리 없음 2022. 11. 23. 20:45반응형
Pulse Oximeter for Animals
소동물 또는 대동물 실험을 위한 산소포화도 측정기

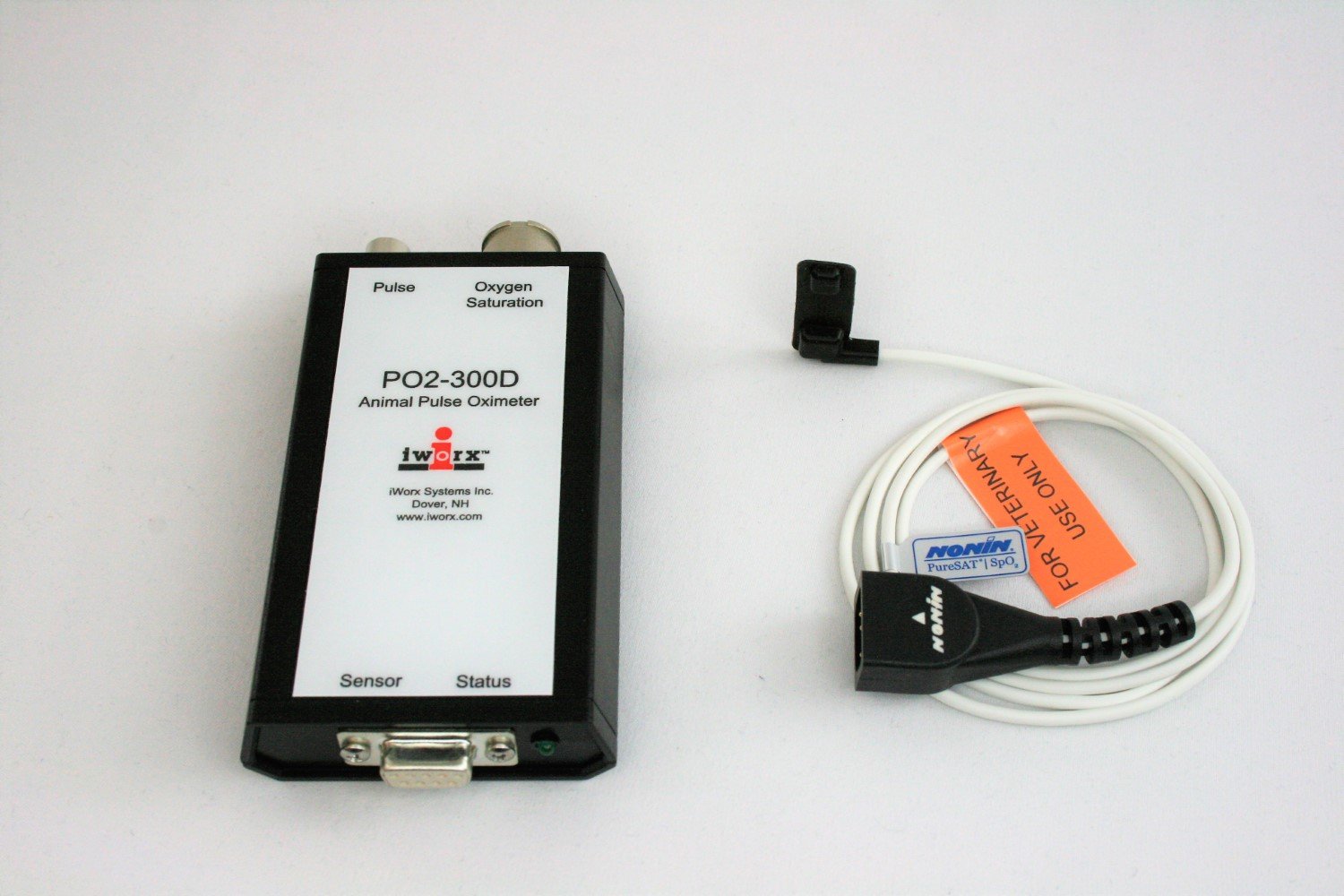

동물용 맥박(PPG), 산소포화도(SpO2) 측정기 이 동물용 산소포화도 측정기는 다양한 방법으로 연결하여 사용이 가능합니다.
USB 커넥터를 컴퓨터나 노트북에 바로 연결하여 독립적으로 SpO2와 PPG, HR 등을 LabSribe software를 활용하여 바로 측정 및 분석이 가능하며 BNC, DIN8, iWire 커넥터를 사용하여 통합 생체신호 측정기인 iWorx의 데이터 레코더와 연결하여 축정도 가능합니다.
Pulse-Ox Transflectance Sensor
소동물의 혈중 산소포화도(SpO2)를 측정하기 위한 반투과율 센서입니다.
현재 판매중인 SpO2중 가장 작은 프로브이며 연속 모니터링에 이상적입니다.

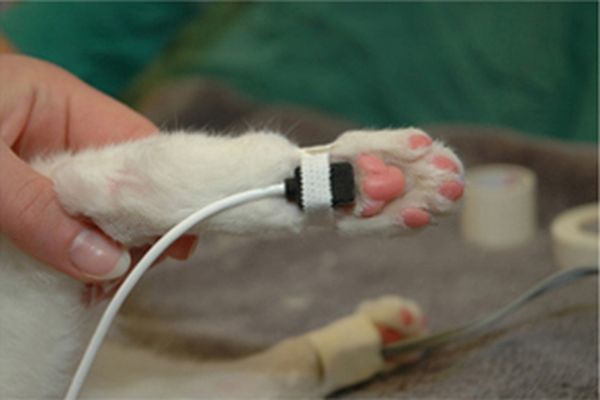

이 센서의 가장 일반적인 위치는 항문에 가까운 꼬리 밑부분입니다. 또는 동물 발바닥입니다.

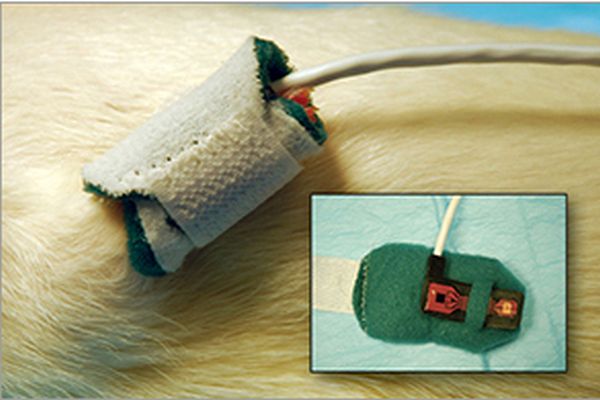

소동물 SpO2 산소포화도 Pulse Ox: Wrap Sensor
설치류 마우스 랫 SpO2 산소포화도 Flexible wrap sensor는 설치류나 다른 작은 동물에게 자주 사용되며 긴 수술 또는 지속적인 모니터링에 이상적입니다.
이 센서는 일부 작은 동물의 꼬리 부분에 사용할 수도 있습니다.
센서의 다이오드는 서로 반대편에 있어야하며 과도하게 착색되거나 털이 있는 부위는 피해야 합니다.

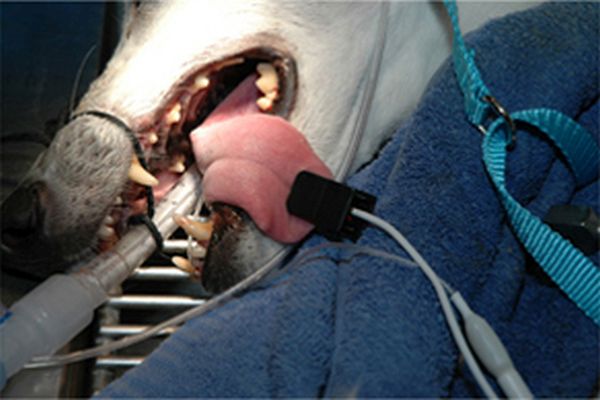

Pulse-Ox: Lingual Clip Sensor
혀 또는 혈류가 잘 흐르는 부위에 사용이 가능한 클립식 센서로 과도한 압력 없이 적용 부위에 고정됩니다.
The vulva or prepuce
If the animal is large enough, it has been reported by some veterinarians that the prepuce or vulva might be an alternate site for the lingual clip sensor. Remember that this site must be well perfused and not pigmented.
Achilles tendon:
On light colored animals (a color of gray or lighter), an alternate application site may be the Achilles tendon. Remove the hair and make sure the skin is not pigmented.Specifications
Oxygen Saturation Range 0 to 100% Pulse Rate Range 18 to 450 pulses per minute Measurement Wavelengths and Output Red – 660 Nanometers @ 0.8 mW maximum average Infrared – 910 Nanometers @ 1.2 mW maximum average SpO2 Accuracy (Arms*) 70-100% 2% of full scale for adults using Nonin Finger Clip Sensor Below 70% not specified Rate Accuracy 3% or 1 digit Temperature : Operating 0° C to +50° C (32° F to +122° F) Temperature :Non Operating -20° C to +70° C (-4° F to +158° F) Humidity 10 to 90% Non-Condensing 이 센서의 사용방법 및 자세한 설명이 필요하시다면 아래의 연락처로 문의주십시오.
항상 최선을 다하겠습니다.
감사합니다.
