MC-Peak Metabolic Cart (Fitness)

MC-Peak Metabolic Cart

MC-Peak 시스템에는 기록 및 측정에 필요한 모든 것이 포함되어 있습니다.



고투바이오 MC-PECK

The Complete Fitness System

■ Compact and portable

■ Affordable

■ Quick set up

■ Easy report generation

■ Customizable reports, including your logo

■ No service contract

■ Free online training

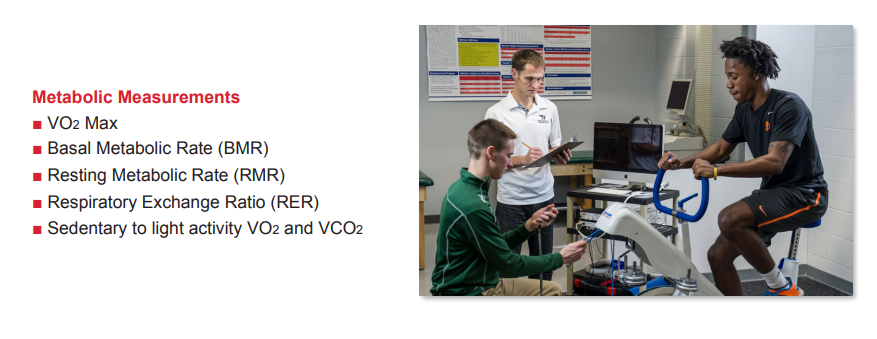

측정 예시

측정 데이터

• Basal Metabolic Rate (BMR)
• Resting Metabolic Rate (RMR)
• Respiratory Exchange Ratio (RER)
• Sedentary to Light Activity
• VO2 and VCO2
• VO2 Max
• Anaerobic Threshold (AT)/ Ventilatory Threshold (VT)

측정 데이터

특징

• Compact and Portable
• O2 and CO2 measurement
• Paramagnetic O2 sensor, which unlike fuel cell based sensors is not consumed
• NDIR CO2 sensor
• LabScribe metabolic analysis software included with custom report generation

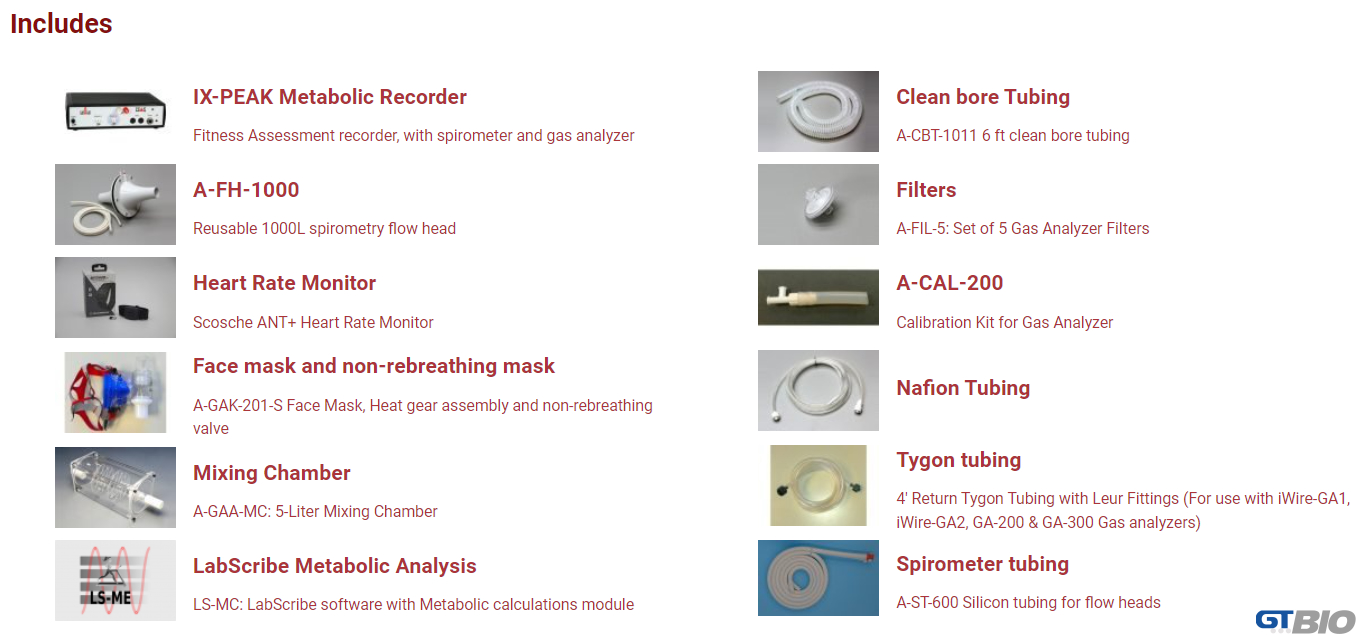

구성품

MC-PEAK 구성품

• Fitness Assessment recorder, with spirometer and gas analyzer
• Reusable 1000L spirometry flow head
• Scosche ANT+ Heart Rate Monitor
• Face Mask, Heat gear assembly and non-rebreathing valve
• 5-Liter Mixing Chamber
• LS-MC: LabScribe software with Metabolic calculations module
• 6 ft clean bore tubing
• Set of 5 Gas Analyzer Filters
• Calibration Kit for Gas Analyzer
• Nafion Tubing
• Tygon tubing
• Spirometer tubing

분석방법



Specifications

General
Sensors	Volume, O2, CO2,Temp, Barometric Pressure, HR
iWire	2 iWire Ports
Temp	10 – 50 deg C
HR	Compatible with Polar Heart Rate
CO2 Sensor
Range	0-10%
Sense Method	NDIR
Resolution	0.01% CO2
Error	< 0.26% CO2
Drift	<0.05 % in 4 hours, <0.2% in 24 Hrs
Warm up	5 minutes
O2 Sensor
Range	0-50 %
Sense Method	Paramagnetic
Resolution	0.1% O2
Error	< 0.2% O2
Drift	< 0.4% in 1st 24 Hours, then <0.2% additional the following week, then < 0.2% additional per each following month.
Warm up	1 minute

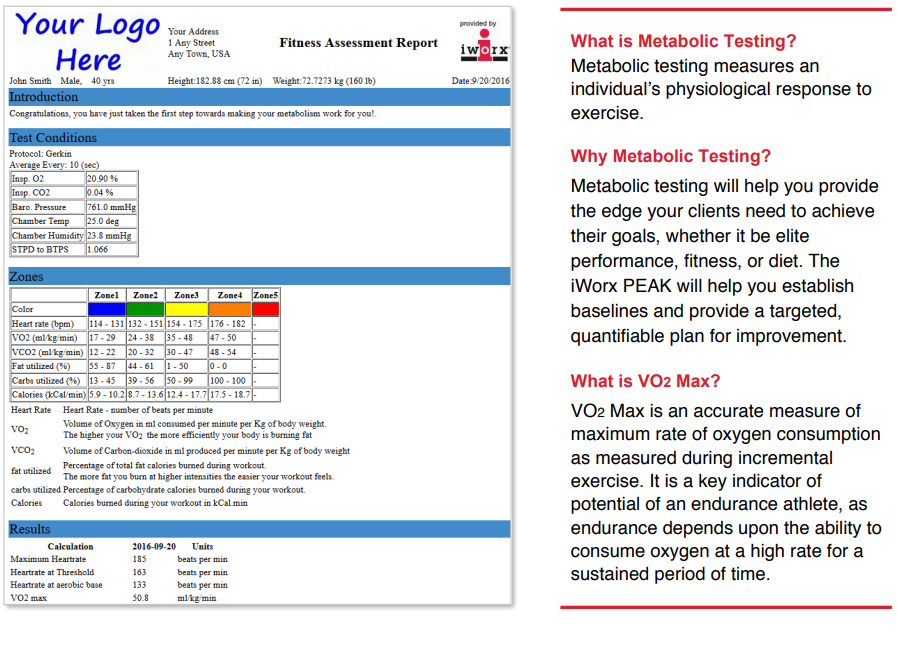

분석 보고서 작성

자세한 설명이 필요하시다면 연락 주십시오.
